Electrochemical in situ Raman test cell K008

The gas flow channel is designed to make the gas spread evenly. The electrolyte may circulate.

Classification:

In-situ Raman Electrolytic Cell

Key words:

electrode

Messages

Electrochemical in situ Raman test cell K008
Material	Body material: PEEK (polyether ether ketone) Window material: sapphire
Main parameters	Working face distance window 3.5mm Dimensions 877020mm Reaction surface of working sample 1010mm Suitable for installation sample size 1515 Window effective Ø40mm, sapphire thickness 1mm The distance from the surface of the working electrode to the lower surface of the window sheet is 2.5mm Standard with platinum counter and silver chloride reference Working electrode carbon paper, working electrode sheet should be self-leakage material.
Uses and features	The gas flow channel is designed to make the gas spread evenly. The electrolyte may circulate.

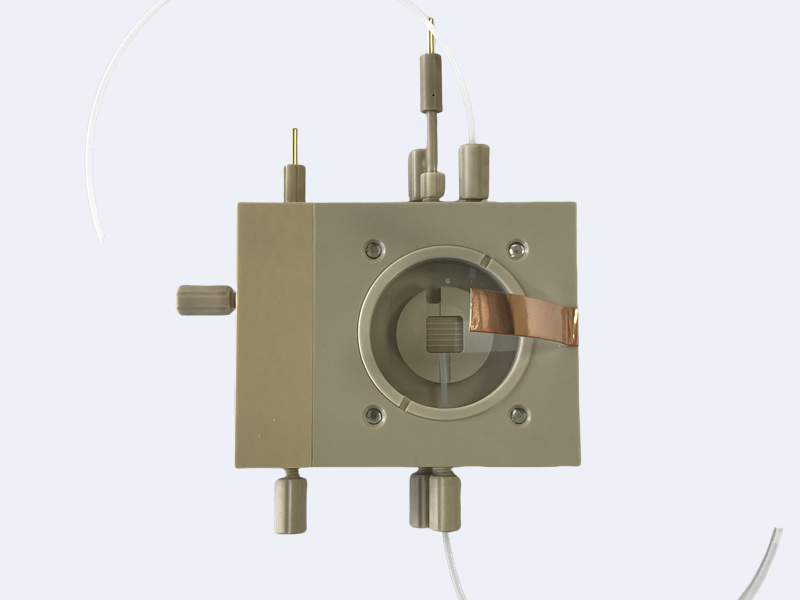

Electrochemical in situ Raman test cell K008

Material

Body material: PEEK (polyether ether ketone)
Window material: sapphire

Main parameters

Working face distance window 3.5mm
Dimensions 87*70*20mm
Reaction surface of working sample 10*10mm

Suitable for installation sample size 15*15
Window effective Ø40mm, sapphire thickness 1mm

The distance from the surface of the working electrode to the lower surface of the window sheet is 2.5mm
Standard with platinum counter and silver chloride reference
Working electrode carbon paper, working electrode sheet should be self-leakage material.

Uses and features

The gas flow channel is designed to make the gas spread evenly. The electrolyte may circulate.
